Parallelization policy

GKX parallelization claims are separated by workload class and by the identity gates that exist for them. This page owns the parallel evidence: what each route does, which gate it passes, which artifact records it, and how to regenerate that artifact. Single-device performance is in Performance; runnable examples are in Examples.

For release notes and manuscripts, read this page together with Features and Claim Scope. Independent scans and ensembles are the production path. Whole-state nonlinear sharding and nonlinear domain or velocity-space decomposition remain diagnostic correctness/profiler paths until they pass workload-specific identity, conservation, transport-window, and matched profiler gates.

Strategy registry

The metadata API exposes a JSON-friendly strategy table. Release-ready independent-work rows are ordered first: independent_ky_scan, then uq_ensemble.

name	readiness	independent_work	changes_solver_layout
independent_ky_scan	release_ready	true	false
uq_ensemble	release_ready	true	false
whole_state_kx_ky	diagnostic	false	true
velocity_species_hermite	diagnostic	false	true
fft_axis_domain	diagnostic	false	true

Production path: independent work

Production-ready parallelism is scoped to independent solver calls:

• independent k_y scans;

• quasilinear calibration grids;

• finite-difference and sensitivity batches;

• UQ and ensemble workloads.

Use gkx.ky_scan_batches and gkx.batch_map for JAX-array workloads, and gkx.independent_map for file-backed Python tasks. These helpers preserve serial ordering and restrict communication to result aggregation. On one device they reduce to batched vmap execution; on several they use JAX device batching and trim padded edge samples deterministically. Any timing claim from this path must be paired with a serial numerical-identity gate for the reported observables, such as gamma, omega, quasilinear weights, or covariance summaries.

For UQ and optimization portfolios, gkx.independent_ensemble_provenance_gate is the compact production-readiness check. It runs the same member function serially and through independent_map, verifies numerical identity and result ordering, checks that oversubscribed worker requests clip to the ensemble size, reconstructs the deterministic independent-work decomposition, and probes IndependentMapExecutionError metadata for worker failures. This is a provenance and identity gate only; it does not make a nonlinear domain-decomposition speedup claim.

Runtime k_y scans can request the same independent-worker policy directly from TOML. This is a scan orchestration path, not a solver-layout sharding path:

[parallel]
strategy = "batch"
axis = "ky"
num_devices = 4      # or batch_size = 4
backend = "auto"     # "thread" or "process" are explicit alternatives

When command-line scan workers are not set explicitly, strategy = "batch" with axis = "ky" resolves to independent per-k_y solver calls and records the resolved worker policy in runtime scan artifacts.

Scaling evidence

The large tracked artifacts use real solver work rather than synthetic sleeps, and every multi-worker row is compared against the one-worker result:

Artifact	Workload	Strong scaling (identity passes on every row)
docs/_static/independent_ky_scan_scaling_large.json	Cyclone linear scan, 64 k_y values, Ny=128, Nz=96, Nl=4, Nm=8, 240 RK2 steps per mode	CPU 1.94x / 3.78x / 7.18x on 2 / 4 / 8 workers; two RTX A4000 GPUs 1.88x (94 per cent efficiency). gamma and omega mismatch is zero.
docs/_static/quasilinear_uq_ensemble_scaling_large.json	six Cyclone ITG gradient samples x five k_y, Ny=96, Nz=64, Nl=3, Nm=6, 2000 RK2 steps per mode, late-time growth fits and a reduced mixing-length feature	CPU 1.70x / 2.75x / 5.41x on 2 / 4 / 8 requested workers (six ensemble chunks); two RTX A4000 GPUs 1.71x (86 per cent)

These are the figures to cite for parallelization speedup claims. The UQ feature observable is parallelization and UQ plumbing; it is not a promoted absolute nonlinear heat-flux predictor. The combined artifacts cite their split CPU and GPU companions (*_cpu_large and *_gpu_large), which are regenerated with:

KY=$(python -c "print(','.join(f'{0.04 + 0.0125*i:.3f}' for i in range(64)))")

# retired generator; restore it first: git show f005418bf575:scripts/profiling/profile_parallel_workloads.py > scripts/profiling/profile_parallel_workloads.py
python scripts/profiling/profile_parallel_workloads.py independent-ky \
  --backend cpu --devices 1,2,4,8 --ky "$KY" \
  --ny 128 --nz 96 --nl 4 --nm 8 --steps 240 \
  --out-prefix docs/_static/independent_ky_scan_scaling_cpu_large
python scripts/profiling/profile_parallel_workloads.py independent-ky \
  --backend gpu --devices 1,2 --ky "$KY" \
  --ny 128 --nz 96 --nl 4 --nm 8 --steps 240 \
  --out-prefix docs/_static/independent_ky_scan_scaling_gpu_large
# retired generator; restore it first: git show f005418bf575:scripts/artifacts/plot_scaling_panels.py > scripts/artifacts/plot_scaling_panels.py
python scripts/artifacts/plot_scaling_panels.py independent-ky

# retired generator; restore it first: git show f005418bf575:scripts/profiling/profile_parallel_workloads.py > scripts/profiling/profile_parallel_workloads.py
python scripts/profiling/profile_parallel_workloads.py quasilinear-uq \
  --backend cpu --devices 1,2,4,8 \
  --out-prefix docs/_static/quasilinear_uq_ensemble_scaling_cpu_large
python scripts/profiling/profile_parallel_workloads.py quasilinear-uq \
  --backend gpu --devices 1,2 \
  --out-prefix docs/_static/quasilinear_uq_ensemble_scaling_gpu_large
# retired generator; restore it first: git show f005418bf575:scripts/artifacts/plot_quasilinear_diagnostics.py > scripts/artifacts/plot_quasilinear_diagnostics.py
python scripts/artifacts/plot_quasilinear_diagnostics.py uq-ensemble-scaling

Two smaller identity gates cover the same policy. The solver-backed Cyclone k_y-scan gate runs the linear solver serially and with fixed-shape k_y batching and checks gamma and omega identity (docs/_static/parallel_ky_scan_gate.json, zero mismatch). The logical-CPU gate exercises RuntimeParallelConfig and batch_map on a structured pytree output (docs/_static/logical_cpu_parallel_scan_gate.json, max_gamma_rel_error=6.7e-8, max_ql_rel_error=1.0e-7, zero omega error); it verifies the parallel API, not gyrokinetic physics. Their timings are engineering metadata only.

# retired generator; restore it first: git show f005418bf575:scripts/artifacts/generate_parallel_identity_gate.py > scripts/artifacts/generate_parallel_identity_gate.py
python scripts/artifacts/generate_parallel_identity_gate.py ky-scan
python scripts/artifacts/generate_parallel_identity_gate.py logical-cpu --logical-devices 2

Production closure status

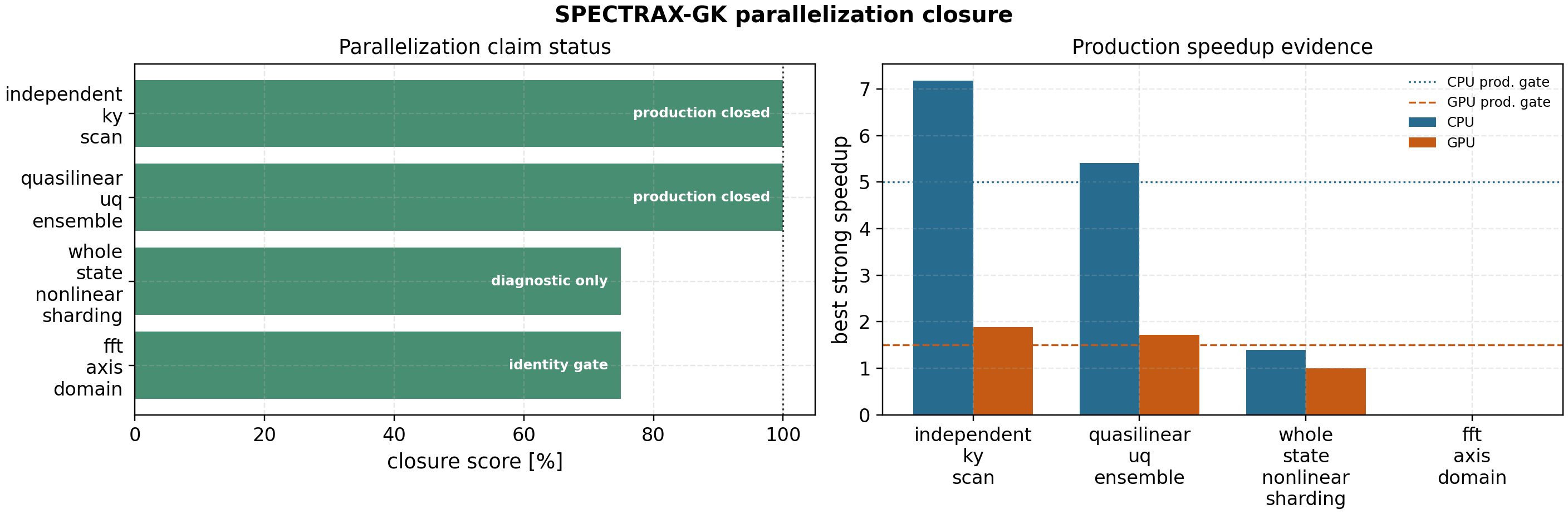

docs/_static/parallelization_completion_status.json combines the production scaling evidence and the diagnostic decomposition gates into one machine-readable claim boundary. It reports the release production-completion percentage and the status of each lane: production independent-work parallelization is closed for independent k_y scans and quasilinear/UQ ensembles, with the best speedups quoted above, and it embeds the independent UQ/optimization provenance gate for serial-vs-parallel ordering, worker clipping, exception metadata, and deterministic reconstruction. Whole-state nonlinear sharding and FFT-axis decomposition remain diagnostic, not production nonlinear speedup claims.

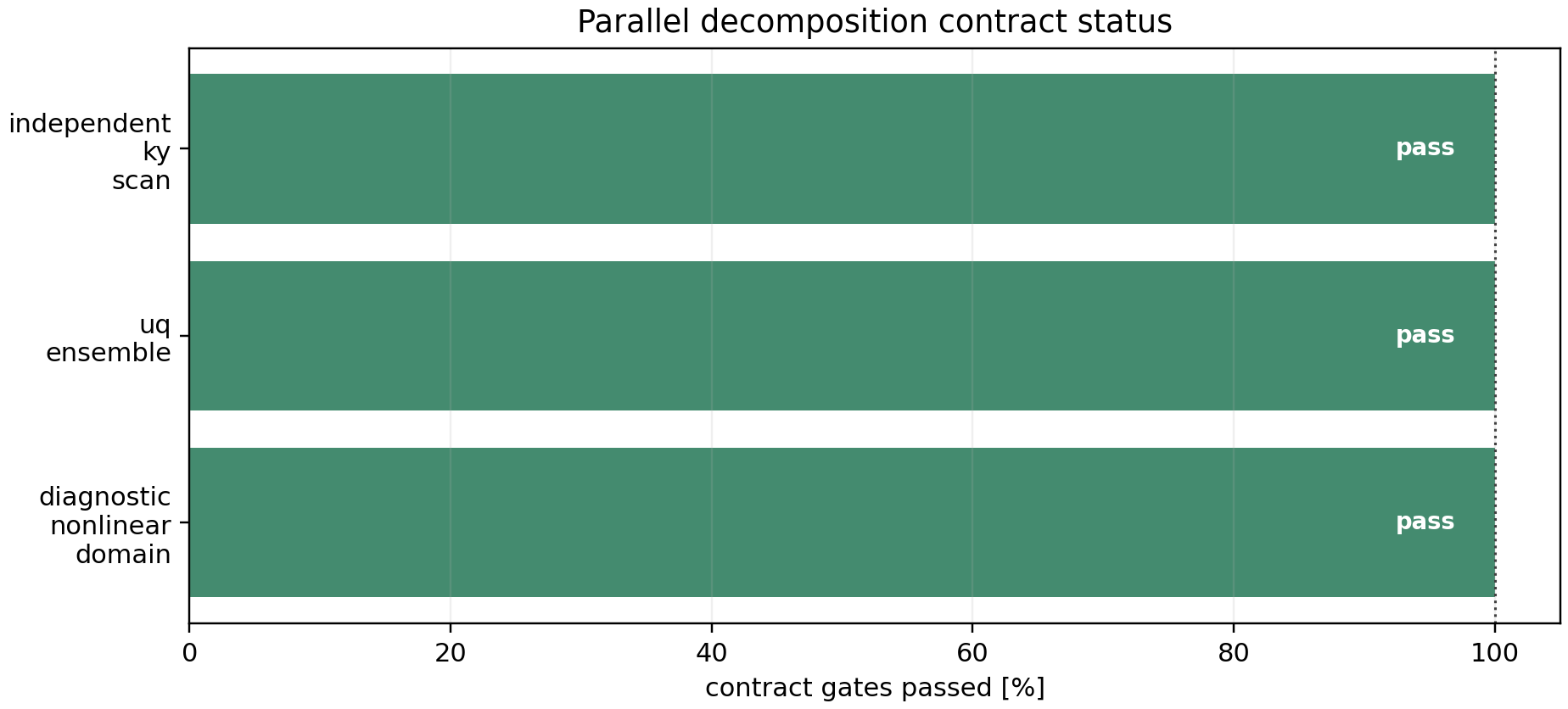

The lower-level decomposition-contract status checks deterministic shard assignment, serial reconstruction identity, and claim-level separation without rerunning large profiles. It passes for production independent k_y and UQ portfolios and for a diagnostic nonlinear state-domain partition. Passing the diagnostic row does not imply runtime nonlinear domain decomposition: it only proves that the metadata split/reassemble contract is internally consistent and correctly scoped as non-production.

Nonlinear runs: the species x Hermite mesh

The nonlinear decomposition GKX routes production runs through is a 2-D (species, hermite) device mesh under jax.shard_map, species factored first and Hermite second, with (ky, kx), the Laguerre axis and z replicated on every device. Every FFT the RHS performs – both bracket transforms, the periodic z derivative and the twist-shift linked chains – runs over an axis this mesh never splits, so a shard is a slab the serial kernels already evaluate and there is no distributed transpose anywhere in the operator. The route is gkx.parallel.integrators.integrate_nonlinear_species_hermite; it accepts the explicit methods (rk2, rk3, rk4, sspx3).

Factoring rule (gkx.parallel.velocity_plan.build_species_hermite_mesh_plan): the species block count is the largest factor of the device count that divides Ns, the Hermite block count is the remainder, Nm must be exactly divisible by it, and each Hermite block must hold at least the width-2 halo. A padded Hermite axis would put a shard’s ghost rows outside its neighbour, so an indivisible request fails closed and the runtime error names the device counts that do work. Two devices with two species therefore give a mesh (2, 1): halo-free, one collective.

Collectives, and nothing else:

Tag	Primitive	What it carries
C1	psum	The masked global m = 0..3 moment head, then the species sum inside the field solve. Delivers those rows to every shard in one collective rather than a reduce followed by a broadcast; adding exact zeros from the non-owning Hermite blocks leaves the owner’s contribution bit-for-bit unchanged.
C2	ppermute x2	One width-2 Hermite halo, one exchange per direction, covering the m +- 1 ladder of streaming and mirror and the m +- 2 reach of curvature together. Emitted only when the Hermite axis is actually split.
C5	psum	The four scalar traces, accumulated inside the integration scan carry.

tests/unit/parallel/test_parallel_linear_velocity.py pins that structure on the compiled HLO: the route emits no all-to-all (one would mean a perpendicular axis had been split), it does emit an all-reduce, and the halo is exactly two collective-permute operations.

Shard-local kernels are the unmodified serial kernels. That is possible because a HermiteWindow carries the global moment coordinates of the slab into the operators whose coefficient is a function of the global Hermite index – the streaming field drives at m = 0, 1, 2, the diamagnetic drive at m = 0..3, the reflectionless closure at the last moment, build_H, and the hypercollision normalization. Without it every shard would drive its own local row zero and close the hierarchy at its own last moment, which is a wrong answer rather than a slow one. Conserving collisions are the one term family a split Hermite axis does not serve yet: they read the m = 0, 1, 2 moments of the local slab, so a run with nonzero collisions and more than one Hermite block raises NotImplementedError. A species-only mesh is unaffected.

Placement is staged from host. Handing device_put an array already committed to one device asks the runtime to reshard it across the mesh, and on the two-GPU box that path silently returns a wrong answer (maximum relative error 1.0 against serial, while a one-device mesh on the same GPU is exact). gkx.parallel.integrators.stage_from_host round-trips through host memory once per run and is a no-op when the buffer is already correctly placed.

Identity is gated in the same test file: the sharded RHS matches the serial production nonlinear RHS to 1e-6 relative on one-, two- and four-device meshes, and a fixed-step trajectory with its scan-fused scalar traces matches serial to 5e-6 absolute.

Speedup status: not a production speedup claim. The nonlinear bracket is kept in its own kernel (optimization_barrier) because XLA otherwise folds the whole linear operator into the elementwise add that joins it to the bracket, and that fusion is several times slower on a one-species shard. The test that pins the split records the measurement behind it on 2 x RTX A4000 (jax 0.11.1, grid (Ns, Nl, Nm, Nky, Nkx, Nz) = (2, 8, 16, 64, 64, 32)): two-device scaling of 1.30x with the fusion and 2.14x without, against a 1.90x scaling gate. No profiler artifact for that workload is tracked under docs/_static, so the number stays a recorded engineering measurement until one is. Logical CPU devices share the same cores, so a CPU run of this route is an identity check, not a timing.

Runtime routing for nonlinear runs

[parallel] is read by the nonlinear runtime path as well as the linear one, and every request it cannot honour raises rather than silently running serially. One sharded nonlinear run is requested with:

[parallel]
strategy = "shard_map"
axis = "species_hermite"
num_devices = 2
strict_identity = true

or, letting the mesh follow the visible devices:

[parallel]
auto = true

auto resolves to strategy = "shard_map" and axis = "species_hermite" over every visible device, with strict_identity = true, and the resolved plan is printed before the run starts, for example:

routing nonlinear run through shard_map nonlinear route on a auto-selected
species x Hermite mesh (2 species x 1 Hermite) across 2 devices, shard
(1, 4, 16, 8, 8, 8), collectives: field psum, no halo (strict_identity=on)

auto never silently overrules an explicit request: a conflicting strategy or axis is a configuration error. The accepted axis aliases for the production mesh are species_hermite, velocity, s_m, species, m and hermite. axis = "ky" is also accepted, as a routing diagnostic: num_devices must divide the k_y extent the state actually stores, and the refusal names the layout that extent came from.

For either axis the runtime places the whole nonlinear state on the mesh and runs the ordinary production integrator on it, so the operator is the production nonlinear RHS rather than a reduced stand-in. The audited shard_map route with the named collectives above is the one the fixed-step trajectory gate covers; the runtime lane does not yet call it. This is a routing claim only, and no speedup is claimed for either runtime axis.

Routing is fail-closed on numerical identity. With strict_identity = true the run is also executed serially and the two answers must agree on the final state and on the Wg, Wphi, heat-flux, and particle-flux traces, with the same allclose-style tolerance convention (atol = 5e-6, rtol = 1e-4). A violation raises NonlinearParallelIdentityError and the sharded result is discarded; it is never returned in place of the serial answer. Setting strict_identity = false skips the serial reference and is only appropriate once the gate is known to pass for that workload. The sharded route needs at least two JAX devices; on CPU they can be forced with XLA_FLAGS=--xla_force_host_platform_device_count=N for testing, which splits one thread pool and is slower than serial (Performance).

Every other combination raises NonlinearParallelRoutingError naming the supported set. In particular axis = "z" is rejected, for two separate reasons:

• the production parallel-streaming derivative is a spectral FFT along z, so a whole-state z shard does not survive SPMD partitioning; and

• the retired device-z pencil route (gkx.operators.nonlinear.device_z, removed in ARCH-A) evaluated a reduced diagnostic bracket operator with a model field solve and no streaming, mirror, curvature, collision, or species terms. Its serial-vs-sharded identity was real, but it was identity for a different operator than the one a runtime nonlinear run integrates, so it could not stand in for the production RHS.

The independent-work strategies (batch, combined_ky) are also rejected on this path: they orchestrate separate solver calls for k_y scans and ensembles and cannot shard a single nonlinear run.

Diagnostic path: whole-state nonlinear sharding

Fixed-step whole-state nonlinear sharding is diagnostic-only. The integrate_nonlinear_sharded / TimeConfig.state_sharding path ("auto" or a state axis such as "ky" or "kx") uses a pjit scan that preserves the serial Runge-Kutta update. It is useful for control-flow validation, state-axis identity gates, profiler localization, and testing candidate layouts. It is not a production nonlinear domain decomposition or multi-GPU speedup claim. Do not use it as evidence for a whole-state nonlinear sharding speedup; it has no scoped speedup claim until separate identity gates and matched profiler artifacts exist for that exact workload.

Whole-state sharding does not close the communication problem for nonlinear FFTs, halo exchange, conservation checks, or benchmark-size transport runs. z-axis FFT sharding is not release-gated because the JAX/XLA FFT layout does not pass the multi-device identity gate. On forced multi-device CPU backends the whole-state pjit route can abort inside XLA’s CPU FFT layout code, so the profiler skips active multi-device CPU whole-state sharding by default and records cpu_whole_state_pjit_sharding_unsafe_for_fft_layout as a fail-closed blocker; --allow-unsafe-cpu-state-sharding is for bounded debugging only.

The artifacts that control the conclusion:

• docs/_static/nonlinear_sharding_profile_office_gpu_physical.json: three interacting spectral perturbations on a (4,8,32,32,64) state for 100 RK2 steps with a nonzero initial nonlinear RHS. On two RTX A4000 GPUs serial execution takes 3.77 s, while ky and kx whole-state placement take 9.19 s and 7.22 s, and both fail final-state and RHS identity.

• docs/_static/nonlinear_sharding_profile_office_gpu_benchmark_grid.json: (4,8,64,192,24), 20 RK2 steps. Active kx sharding runs at 0.21x of serial (0.893 s serial against 4.22 s sharded) and fails trajectory identity (max_abs_state_error=20.0, max_abs_rhs_error=1279) with a zero potential difference, which is why a potential-only check is not a sufficient gate.

• docs/_static/nonlinear_sharding_strong_scaling_large.json: the final state is identity-correct at every tracked point, but logical-CPU speedup saturates near 1.39x and the two-RTX-A4000 auto route is slower than one GPU on the larger Nx=48, Ny=96, Nz=128, Nl=4, Nm=8 fixed-step case (0.586x strong scaling). The combined artifact is fail-closed: identity_passed may be true while speedup_passed is false, with explicit speedup_blockers naming the backend/device row that regressed.

• docs/_static/nonlinear_sharding_production_speedup_gate.json: the only artifact that may promote whole-state nonlinear sharding wording beyond diagnostic/profiler evidence, and only for the exact workload it gates. It fails closed as diagnostic_only unless the CPU and GPU rows both pass serial identity, use active state sharding, and meet the speedup and parallel-efficiency thresholds. Its backend_blocker_report keeps identity-evidence blockers separate from speedup/efficiency blockers, so an identity-complete slowdown remains diagnostic.

For final-state-only profiling the explicit scan accepts return_fields=False, which skips the post-step RHS evaluation that exists only to materialize the final field history. The artifacts are regenerated with isolated subprocesses so each device count gets a clean JAX runtime:

python scripts/profiling/profile_nonlinear_sharding.py \
  --sharding auto --sharding-options auto,kx \
  --out-json docs/_static/nonlinear_sharding_profile.json

python scripts/profiling/profile_nonlinear_sharding.py sweep \
  --backend cpu --devices 1,2,4,8 \
  --nx 24 --ny 48 --nz 96 --nl 4 --nm 8 --steps 8 \
  --out-prefix docs/_static/nonlinear_sharding_strong_scaling_cpu_large
python scripts/profiling/profile_nonlinear_sharding.py sweep \
  --backend gpu --devices 1,2 \
  --nx 48 --ny 96 --nz 128 --nl 4 --nm 8 --steps 12 \
  --out-prefix docs/_static/nonlinear_sharding_strong_scaling_gpu_xlarge
# Equivalent two-GPU preset with JAX traces enabled.
python scripts/profiling/profile_nonlinear_sharding.py sweep --office-gpu-xlarge

# retired generator; restore it first: git show f005418bf575:scripts/artifacts/plot_scaling_panels.py > scripts/artifacts/plot_scaling_panels.py
python scripts/artifacts/plot_scaling_panels.py nonlinear-sharding
# retired generator; restore it first: git show f005418bf575:scripts/artifacts/generate_nonlinear_sharding_production_gate.py > scripts/artifacts/generate_nonlinear_sharding_production_gate.py
python scripts/artifacts/generate_nonlinear_sharding_production_gate.py

The profiler JSON records device count, requested sharding axis, warm serial/sharded timings, profiler-trace status, final-state and final-field/RHS errors, the fastest identity-preserving candidate, and a versioned source contract (command, argv, backend, device count, warmup/repeat policy and software versions). The small checked-in nonlinear_sharding_profile.json and nonlinear_sharding_profile_office_gpu.json are control-flow smoke tests on states with a zero or tiny nonlinear bracket and are superseded for physical identity decisions. The fast checker scripts/checks/check_parallel_scaling_artifacts.py validates the gate, its CSV sidecar, its CPU/GPU source rows, its required-backend blockers, and the per-backend blocker report without rerunning any profiler.

Diagnostic path: nonlinear domain and device-z decomposition

These prototypes decompose the perpendicular spectral plane or the field-line axis. None of them runs the production nonlinear RHS, and none is a production nonlinear speedup claim. Their source modules (gkx.operators.nonlinear parallel, spectral_core, spectral_identity_*, domain_decomposition, parallel_contracts_* and device_z) and their profilers left the package in ARCH-A (2026-09-23) because no run, CLI command or solver path reached them; the JSON artifacts below are kept as frozen evidence of what was measured.

• Local state-domain gate. docs/_static/nonlinear_domain_parallel_identity_gate.json checks a deterministic local nonlinear state update with one-cell halo chunks against the serial update, and its embedded nonlinear_domain_transport_window_identity sub-gate advances a short fixed-step window comparing final state, boundary, mass, free-energy-proxy and boundary-flux-proxy traces. Any recorded blocker (noncanonical axes, incomplete chunk coverage, shape mismatch) disables the prototype path even if the arrays compare equal. It does not validate distributed FFTs, field solves, runtime routing or speedup.

• Spectral communication gate. docs/_static/nonlinear_spectral_communication_identity_gate.json checks, on (N_l,N_m,N_y,N_x,N_z) spectral data, the split/reassemble and transpose operations a distributed FFT would need, a tile-reassembled nonlinear RHS -\{\phi,g\}, a short fixed-step micro-integration, and a device-z pencil fused-bracket route over a short transport window. Passing it is what made fft_axis_domain diagnostic rather than blocked; logical tiles were reconstructed for identity validation, not executed as a distributed FFT.

• Routing work model. docs/_static/nonlinear_spectral_domain_routing_profile.json on a (2,4,32,32,4) four-tile profile: the global-reconstruction route has a communication/owned-work ratio of 6.375 and a parallel-efficiency ceiling of 0.136, and times at 1.08x of serial; the pencil route’s model gives 0.075 and 0.930, but its recorded timing (0.75x) predates the fused local bracket below and has not been regenerated.

• Device-z pencil bracket. The z-sharded route keeps both transform axes local to each device, so the local bracket is computed with the same fused perpendicular transform the serial route uses and sharding z involves no collectives in the bracket. The current result is docs/_static/nonlinear_device_z_pencil_scaling_decomposition_gpu2_fused_profile.json: on two RTX A4000 GPUs, timed one grid per process with the --isolate-shapes flag of scripts/profiling/profile_device_z_pencil_scaling_decomposition.py (retired; Retired generators), the single-device route overhead is 0.988 to 1.005 of the fused serial route, one-to-two-device scaling is 1.92x to 2.01x, and the net speedup is 1.95x to 2.01x over five grids from (4,8,96,96,48) to (4,16,128,128,64), with serial-versus-sharded final-state error exactly 0.0. Isolation is a correctness requirement: grids timed in one process share compiled executables and a warm allocator and have been measured to under-report the route overhead.

  This is the bracket micro-route – a five-dimensional state, a model field solve phi = n/(1+kperp^2) and the ExB bracket alone, with no streaming, drift, collision, dissipation, electromagnetic or species terms – so it is a localization result, not a production nonlinear speedup claim, and the runtime rejects axis = "z" for the reasons above.

  The scalar diagnostic path is a separate and much larger cost: docs/_static/nonlinear_device_z_pencil_transport_gpu2_observable_split_profile.json records a host-gathered observable gate costing 42.6 times the sharded compute median on the auto-chunked (4,16,96,96,64) two-GPU diagnostic. --observable-repeats adds that split to a profile, and --observable-mode sharded_reduce computes the observables through device z reductions for identity debugging, recomputing the bracket to do so. The earlier transport-window, RHS and granularity profiles (nonlinear_device_z_pencil_{rhs,transport}_{cpu4,gpu2}_profile.json, nonlinear_device_z_pencil_transport_gpu2_granularity_profile.json and nonlinear_device_z_pencil_scaling_decomposition_gpu2_profile.json) were measured with the axis-staged bracket the fused one replaced and remain as identity evidence only. --z-chunk-size and --auto-z-chunk-size are a feasibility control for cuFFT batched-plan failures on large grids (with XLA_PYTHON_CLIENT_PREALLOCATE=false), not a performance control.

Before nonlinear domain decomposition can be promoted beyond this diagnostic state, the runtime route must pass all of the following gates on the same workload family that appears in the speedup figure:

• full nonlinear RHS identity for dG, phi, the nonlinear bracket, density/field-solve layout, Hermitian projection, and dealiasing;

• fixed-step serial-vs-decomposed integration identity for final state, final fields, final RHS, and per-step scalar traces;

• boundary/interface identity for owned and halo cells, not only a global norm;

• conservation agreement for density/mass, a free-energy-like diagnostic, zonal response, and heat-flux proxies;

• post-transient transport-window agreement for Cyclone, KBM, and at least one stellarator smoke case;

• CPU serial, CPU decomposed, one-GPU serial, and two-GPU decomposed parity under the same observable contract;

• matched profiler artifacts for the exact backend, device count, software stack, grid, warmups/repeats, and identity tolerance being claimed.

Until those gates exist, nonlinear decomposition work can be documented as diagnostic engineering evidence only, even if a new profile shows positive timing on one machine.

Velocity-space routes for linear runs

Velocity-space decomposition of the linear operator is gated from the bottom up. gkx.build_velocity_sharding_plan records a species-first, Hermite-second layout, including which axes need Hermite ghost exchange and which need field-solve reductions and broadcasts. Every route is opt-in through gkx.linear_rhs_parallel_cached with RuntimeParallelConfig(strategy="velocity", ...), and each rejects the terms it has no identity gate for rather than dropping them.

The communication and call-graph layers, each with its own identity artifact (two logical CPU devices unless stated):

Layer	Artifact (docs/_static)	Recorded error
Hermite nearest-neighbour ghost exchange	hermite_exchange_gate.json	zero
Hermite-sharded field reduction (lax.psum)	velocity_field_reduce_gate.json	2.8e-9 relative
Hermite streaming-ladder coefficients	hermite_streaming_ladder_gate.json	zero ladder error; reduction 1.9e-6
Electrostatic field reduction (m=0 density to phi)	electrostatic_field_reduce_gate.json	zero
Periodic streaming microkernel against streaming_ladder_term	periodic_streaming_microkernel_gate.json	zero
Streaming-only linear RHS (backend="streaming_only")	linear_rhs_streaming_gate.json	5.6e-7 relative
Streaming with an electrostatic field (backend="streaming_electrostatic")	linear_rhs_streaming_electrostatic_gate.json	4.0e-7 relative; phi 1.9e-9
Mirror and curvature/grad-B drift slices	electrostatic_drift_gate.json	zero
Diamagnetic drive	electrostatic_diamagnetic_gate.json	zero
Composed single-species periodic electrostatic RHS (backend="electrostatic_linear_slices")	linear_rhs_electrostatic_slices_gate.json	3.7e-7 relative; phi 4.2e-9

They are regenerated by scripts/artifacts/generate_velocity_parallel_gates.py (retired; Retired generators) (hermite-exchange, field-reduce, hermite-ladder, periodic-streaming), scripts/artifacts/generate_electrostatic_parallel_gates.py (retired; Retired generators) (field-reduce, drift, diamagnetic) and scripts/artifacts/generate_linear_rhs_parallel_gates.py (retired; Retired generators) (streaming, streaming-electrostatic, electrostatic-slices), each with --logical-devices 2.

Species route. RuntimeParallelConfig(strategy="velocity", axis="species", num_devices=2) evaluates the complete electrostatic linear-slice RHS with one species per device: the shared quasineutrality collective first, then streaming, mirror, curvature, grad-B and diamagnetic terms on local species shards. The enclosing explicit species pmap integrator stages species-dependent state and cache arrays from host once, supports the built-in conserving collision operator, hypercollisions and the electromagnetic field equations (density, parallel-current, polarization and perpendicular-pressure moments reduced with lax.psum), and preserves reverse-mode differentiation through the compiled loop; IMEX stays fail-closed. The standalone shard_map RHS keeps collisions fail-closed.

Mixed species–Hermite route. backend="electrostatic_species_hermite" with axis="species_hermite" and four devices evaluates the periodic, collision-free electrostatic two-species RHS on a (species, m) = (2, 2) mesh. Quasineutrality reduces density over both mesh axes and polarization over species only; the Hermite ladder exchanges boundary moments within each species row; global Hermite and Laguerre indices place the diamagnetic drive, close its Laguerre sum with the analytic truncation coefficient \(\mathcal J_{L}=-\mathcal J_{L-1}(b/2)/L\), and normalize constant and \(|k_z|\) hypercollisions as serial does. Linked flux-tube boundaries use the production chain FFT on each shard because ky, kx and z stay local, and a nontrivial linked case with conserving collisions passes state/field identity on four logical CPU devices. Mixed-mesh electromagnetic fields, other integrators and all GPU claims remain fail-closed; the two-GPU office host cannot test a four-device mixed mesh.

Tracked engineering profiles for these routes (docs/_static):

Artifact	Result
linear_rhs_parallel_slices_profile.json	Hermite-heavy slices route, eight logical CPU devices: 1.40x warm RHS, 5.96e-6 relative error.
linear_rhs_parallel_slices_sweep.json	Hermite resolution x logical device count: identity passes at every point; overhead-limited at one and two devices, best 1.57x at Nm=128 on four. A regime map, not a scaling claim.
linear_rhs_parallel_slices_profile_gpu.json	Two RTX A4000 GPUs: identity passes, 0.03x of the single-GPU serial route. No GPU Hermite-sharding claim.
linear_rhs_species_profile_gpu.json	Species route, 2x8x32x128x1x128 state, two RTX A4000 GPUs: 5.3e-8 relative error, 8.21 ms against 7.11 ms, a scoped 1.16x warm-RHS speedup; smaller states are slower on two GPUs.
linear_rhs_species_profile_cpu.json	Species route, two logical CPU devices: 3.41x isolated RHS, exact 100-step Euler state/field histories, 0.96x end to end.
linear_rhs_species_hermite_profile_cpu.json	Mixed (2, 2) mesh, four logical CPU devices: 3.11x warm RHS, exact 100-step state/field histories, 0.97x end to end.

They are produced by scripts/profiling/profile_linear_rhs_parallel_slices.py (retired; Retired generators) (--axis species or --axis species_hermite for the species routes, --integration-steps for the trajectory rows, sweep for the regime map), for example:

# retired generator; restore it first: git show f005418bf575:scripts/profiling/profile_linear_rhs_parallel_slices.py > scripts/profiling/profile_linear_rhs_parallel_slices.py
python scripts/profiling/profile_linear_rhs_parallel_slices.py sweep \
  --platform cpu --devices 1,2,4,8 --nms 64,128 \
  --nl 4 --ny 32 --nz 128 --rtol 1e-5

# retired generator; restore it first: git show f005418bf575:scripts/profiling/profile_linear_rhs_parallel_slices.py > scripts/profiling/profile_linear_rhs_parallel_slices.py
python scripts/profiling/profile_linear_rhs_parallel_slices.py \
  --axis species_hermite --platform cpu --logical-devices 4 \
  --nl 4 --nm 16 --ny 64 --nz 64 --warmups 2 --repeats 7 \
  --integration-steps 100 --integration-repeats 5 \
  --integration-dt 1e-7 --integration-sample-stride 1 \
  --out-prefix tools_out/linear_rhs_species_hermite_profile_cpu

These gates validate communication and numerical identity for the stated bounded linear paths. They do not validate mixed-mesh electromagnetic fields, multi-species nonlinear field solves, nonlinear brackets, or nonlinear transport speedup.

Diagnostic gate: differentiable species initial states

Species-parallel linear solves preserve traced initial states through input placement. Concrete inputs retain explicit placement; traced inputs never round-trip through host NumPy. For fixed parameters and linear evolution,

\[J(s)=\|G_T(sG_0)\|^2+\|\phi_T(sG_0)\|^2, \qquad J'(1)=2J(1).\]

The electromagnetic trajectory test checks this identity with active \(A_\parallel,B_\parallel\), serial versus species pmap, and eager versus outer-jitted reverse differentiation. Run in separate precision processes:

JAX_ENABLE_X64=true XLA_FLAGS=--xla_force_host_platform_device_count=2 \
  python -m pytest tests/unit/parallel/test_parallel_linear_velocity.py \
  -k species_pmap_electromagnetic_trajectory_matches_serial

Repeat with JAX_ENABLE_X64=false for float32. This three-step identity is an AD/routing contract, not electromagnetic model validation, long-time turbulent sensitivity accuracy or a parallel speedup measurement.

Claim rules

Use the following rules when writing docs, release notes, or papers:

• Call independent k_y/UQ/ensemble batching the production-ready parallelization path when the serial identity gate is current.

• For runtime scan TOMLs, use [parallel] strategy = "batch" with axis = "ky" only for independent k_y scan orchestration.

• Call the nonlinear species x Hermite route production-routed and identity-gated; do not claim speedup for it until a matched profiler artifact is tracked.

• Call whole-state nonlinear sharding a diagnostic correctness/profiler gate, not production nonlinear parallelism unless the exact workload has passed its identity and profiler promotion gates.

• Call the electrostatic two-species linear route production-routed and identity-gated, but do not claim speedup until its matched workload profile passes. Other velocity-space shard_map work remains communication-gated and opt-in.

• Call the mixed species–Hermite linear backend scoped and identity-gated for periodic RK2 integration. Quote speedup only for its exact tracked four-logical-CPU workload.

• Do not claim nonlinear speedup from sharding, velocity decomposition, spectral toggles, or linear-slice profiles without passing identity gates and fresh profiler artifacts for the exact workload, backend, device count, software stack, and identity tolerance being claimed.

• Keep speedup plots separate from identity gates: identity establishes correctness; profiler artifacts establish only the scoped timing claim they measure.

Large-run scaling acceptance checklist

A CPU/GPU strong-scaling result is release-ready only when the tracked artifacts satisfy all of the following:

• the combined *_large JSON/CSV/PNG/PDF files point back to split CPU and GPU source artifacts for the same workload family;

• every split artifact records the actual problem size, backend, requested device counts, warmup/repeat policy, and positive per-worker or per-profile timing samples;

• every row has identity_gate_pass = true and compares against the one-worker or one-device serial reference for the observable being claimed;

• nonlinear whole-state sharding rows embed the per-device profiler/profile payload, including trace-request status, serial timing stats, sharded timing stats, selected axis, and final-state error metrics;

• any speedup wording names the exact backend, device count, workload, grid, software stack, identity tolerance, and artifact files that produced it.

If any item is missing, the result can be kept as local engineering evidence only. In particular, whole-state nonlinear sharding remains not a production nonlinear speedup claim, even when the embedded profile reports a positive engineering timing ratio. Promoting that lane requires fresh profiler artifacts for the exact workload plus full nonlinear identity, conservation, field-solve, FFT/bracket communication, and transport-window gates.

Fast artifact contract check

Before editing scaling docs or manifests, run the checked-in artifact contract:

python scripts/checks/check_parallel_scaling_artifacts.py

This command does not rerun large profiles and does not enforce any minimum speedup. It validates that the tracked JSON/CSV/PNG/PDF sidecars exist, the parallel_scaling manifest lists them, split CPU/GPU source artifacts are attached where required, numerical identity gates pass, error fields are finite, and timing/profiler payloads are positive and scoped to their documented claim.

Release artifact policy

The release-gated parallelization artifacts are grouped by what they are allowed to support:

Artifact family	Primary files	Claim allowed	Claim not allowed
Independent k_y scans	independent_ky_scan_scaling_large.{json,csv,png,pdf}	Production parallelization for independent linear scans when gamma/omega identity is current.	Nonlinear domain decomposition or nonlinear transport speedup.
Quasilinear/UQ ensembles	quasilinear_uq_ensemble_scaling_large.{json,csv,png,pdf}	Production batching for independent reduced-feature and UQ workloads.	Promoted absolute nonlinear heat-flux prediction.
Whole-state nonlinear sharding	nonlinear_sharding_strong_scaling_large.{json,csv,png,pdf}	Correctness and profiler-direction evidence for the pjit state-axis layout.	Production nonlinear multi-GPU speedup.
Prototype nonlinear state-domain gate	nonlinear_domain_parallel_identity_gate.{json,png}	Fail-closed serial-vs-halo-decomposed identity evidence for one bounded local stencil, including the embedded transport-window proxy traces.	Distributed FFT, field-solve, production conservation, transport-runtime, or speedup claims.
Prototype nonlinear spectral communication gate	nonlinear_spectral_communication_identity_gate.{json,png}	Fail-closed split/reassemble identity evidence for FFT round trip, pseudo-spectral bracket, and spectral field-solve layout.	Runtime distributed FFT routing, nonlinear conservation, transport-window, or speedup claims.
Velocity-space linear slices	linear_rhs_parallel_slices_sweep.{json,png,pdf}	Bounded engineering evidence for opt-in electrostatic linear RHS slices.	Electromagnetic, linked-boundary, collision, or nonlinear speedup.

Both tools/performance_optimization_manifest.toml and tools/validation_coverage_manifest.toml list these artifacts explicitly. The tests require the manifests, files, and claim scopes to stay synchronized, so deleting or silently reinterpreting a scaling artifact fails the fast parallelization gate.
