Geometry

S-alpha flux-tube model

The analytic s-alpha model (geometry.model = "s-alpha", the default) is the geometry of the Cyclone base case benchmarks. With the shear function \(\sigma(\theta) = \hat{s}\,\theta - \alpha \sin\theta\), the field-aligned radial wave number is

\[k_x(\theta) = k_{x0} - \sigma(\theta)\, k_y,\]

and the metric coefficients are

\[g_{ds2} = 1 + \sigma^2,\quad g_{ds21} = -\hat{s}\,\sigma,\quad g_{ds22} = \hat{s}^2 .\]

The solver writes the perpendicular wave number with the radial wave number divided by the shear, \(\hat{k}_x = k_{x0}/\hat{s}\):

\[k_\perp^2(\theta) = \left[k_y \left(k_y g_{ds2} + 2 \hat{k}_x g_{ds21} \right) + \hat{k}_x^2 g_{ds22}\right] B^{-2}(\theta), \qquad B(\theta) = \frac{1}{1 + \epsilon \cos\theta},\]

so the factors of \(\hat{s}\) cancel at finite shear. The \(B^{-2}\) factor is applied when kperp2_bmag = True (see Normalization). At exactly zero shear the solver uses \(\hat{k}_x = k_{x0}\) and \(g_{ds22} = 1\), so radial modes keep their finite-Larmor-radius dependence. The same zero-shear contract applies to SlabGeometry (gkx.geometry.analytic).

The metric coefficients select the zero-shear branch with jnp.where on s_hat, so they stay traceable: at finite shear, jax.grad and jax.jit(jax.grad(...)) of the s-alpha and slab metric coefficients with respect to s_hat agree with central finite differences (tests/unit/geometry/test_geometry.py). Derivatives across the zero-shear switch are not claimed.

Parameters

The geometry is specified by:

q: safety factor
s_hat: magnetic shear
epsilon: inverse aspect ratio
R0: reference major radius
B0: reference magnetic field
alpha: pressure-gradient parameter in \(\sigma(\theta)\)
drift_scale: drift normalization (1.0 is the tracked default; 2.0 selects the alternate doubled-drift convention)

Field-aligned grid parameters

For direct comparison with published Cyclone base case benchmarks, GridConfig exposes field-aligned grid inputs:

y0 sets the minimum binormal wave number via \(k_y \rho = 1/y_0\). Internally this maps to Ly = 2\pi y0 so that the FFT grid spacing matches.
ntheta and nperiod (or zp) control the parallel grid. We set \(Z_p = 2\,nperiod-1\) and choose Nz = ntheta * Zp, which spans \([-\pi Z_p, \pi Z_p)\).

Curvature and grad-B drift

The magnetic drift frequency used in the linear operator is

\[\omega_d(\theta) = k_y \left(\mathcal{C}_v + \mathcal{C}_g\right) + \hat{k}_x \left(\mathcal{C}_v^0 + \mathcal{C}_g^0\right),\]

with the same \(\hat{k}_x\) as above and

\[\mathcal{C}_v = \mathcal{C}_g = d\,\frac{\cos\theta + \sigma(\theta)\sin\theta}{R_0}, \qquad \mathcal{C}_v^0 = \mathcal{C}_g^0 = -d\,\frac{\hat{s}\sin\theta}{R_0},\]

where \(d\) is drift_scale.

Slab Model

GKX exposes a slab flux-tube geometry contract directly with geometry.model = "slab". This is the correct backend for slab secondary and collisional-ETG benchmark families; it is not an s-alpha approximation.

The slab overrides are:

bmag = 1 and bgrad = 0
cvdrift = gbdrift = cvdrift0 = gbdrift0 = 0
gradpar = 1 by default, or 1/z0 when geometry.z0 > 0
the metric still uses the supplied s_hat unless geometry.zero_shat = true
with zero_shat = true, the slab metric becomes gds2 = 1, gds21 = 0, gds22 = 1 and the effective solver shear is zero

Unit tests lock this contract.

Geometry Data Contract

The linear cache accepts either:

the analytic SAlphaGeometry model, or
a sampled FluxTubeGeometryData contract.

FluxTubeGeometryData stores the solver-ready profiles on a specific theta grid:

bmag and bgrad,
gradpar,
metric coefficients (gds2, gds21, gds22),
curvature / grad-B drift coefficients (cv, gb, cv0, gb0),
explicit jacobian and grho profiles when the source provides them,
geometry metadata such as q, s_hat, R0, and the kperp2_bmag / bessel_bmag_power switches.

sample_flux_tube_geometry converts the analytic s-alpha model into the same contract, and ensure_flux_tube_geometry_data normalizes analytic and sampled inputs onto one solver-facing representation. The contract is a JAX pytree and is accepted by the linear cache, the runtime initial-condition builder, the RHS assembly entry points, the nonlinear config runner, and the reference-compatible volume-weight diagnostics.

Imported field-line geometry

load_imported_geometry_netcdf reads grouped NetCDF files with Geometry/Grids groups and root-level *.eik.nc field-line geometry files. A runtime deck selects it with geometry.model = "imported-netcdf" and geometry.geometry_file = "external_geometry.nc". The aliases "imported-eik", "vmec-eik", and "desc-eik" use the same importer, so a deck can record the provenance of a *.eik.nc file without changing the solver-facing contract. An imported file can be a grouped diagnostic *.out.nc file or a VMEC/DESC-generated *.eik.nc file.

The importer infers whether the terminal theta point is present from the periodic endpoint content of the profiles, so VMEC-style closed grids and already-open Miller *.eiknc.nc grids both map onto the solver’s open grid. Tests lock both cases: closed-interval VMEC/DESC files preserve theta_scale/nfp metadata and trim the terminal point, and GX Miller *.eiknc.nc files keep their open grid with no trim.

Imported geometry is used as sampled. GKX does not rebuild the twist-shift from analytic formulas; the runtime takes the file’s theta extent, its jtwist/x0 defaults for linked and fix aspect boundaries, and its kxfac metadata, so the flux-tube grid is built on the field-line domain the file encodes. The linear cache treats "fix aspect" and "continuous drifts" as linked twist-and-shift boundaries.

On the W7-X linear ITG case, the imported geometry reproduces the GX t=2 reference on the same sampled field line. The scan in docs/_static/w7x_linear_t2_scan.csv gives mean relative gamma errors of 2.3% to 3.4% and mean relative omega errors of 0.02% to 0.27% over ky = 0.1 to 0.8. benchmarks/cases/w7x_nonlinear_imported_geometry.toml runs the GX nonlinear W7-X adiabatic-electron setup on a *.eik.nc file.

VMEC runtime bridge

With geometry.model = "vmec", the runtime generates a *.eik.nc file from a VMEC WOUT (gkx.geometry.vmec_eik) and then re-enters the imported contract above. When GKX chooses the output path, the file is cached by input content and VMEC file timestamp. An explicit geometry_file is treated as an output target and regenerated, never reused. For fix aspect cases the bridge leaves x0 unset, so the flux-tube cut is chosen from y0 and the geometry. geometry.vmec_file expands environment variables and ~.

The shipped runtime decks point to relative wout_*.nc paths under examples/vmec. Generate them from the bundled vmex input decks with examples/vmec/generate_wouts.sh or a single vmex input.<case> command; --vmec-file overrides the path for a machine-specific equilibrium.

When booz_xform_jax is not installed into the active environment, point GKX at it through BOOZ_XFORM_JAX_PATH or GKX_BOOZ_XFORM_JAX_PATH. The JAX backend is preferred; a booz_xform install is used only as an automatic fallback reader. Differentiable VMEC/Boozer transport-gradient audits require a booz_xform_jax checkout at or after upstream commit 1d5e8c. That revision replaces inactive zero-mode Fourier divisions by safe denominators in the JAX Boozer transform so reverse-mode cotangents through w spectrum reconstruction remain finite. Older checkouts can produce finite values but non-finite gradients and must not be used for promoted transport-gradient claims.

The W7-X exact-state audit docs/_static/w7x_exact_state_audit.json checks the VMEC runtime path against GX on the same states: startup g_state and phi, and, on the dumped late nonlinear state, phi, kperp2, fluxfac, Wg, Wphi, and heat flux. Its maximum finite pointwise relative error is 4.62e-5 under a 1e-4 gate, and the late scalar diagnostics agree to better than 1.8e-7. The comparison reconstructs GX’s compressed real-FFT positive-ky dump grid from diag_state_ky_t*.bin.

Miller geometry

With geometry.model = "miller", the in-package backend constructs the Miller surface, the straight-field-line and equal-arc grids, and the metric and drift coefficients, writes a root-level *.eiknc.nc file, and re-enters the imported contract. An existing generated target is reused unless gkx geometry miller --force is requested. The Cyclone Miller rows of Validation exercise this backend.

Command-line entry points:

gkx geometry vmec --config ... generates a compatible *.eik.nc file from a GKX runtime TOML.
gkx geometry miller --config ... generates a compatible Miller *.eiknc.nc file from a GKX runtime TOML, or reuses the existing target when its path is already populated.
examples/04_nonlinear_stellarator/run.py and examples/04_nonlinear_stellarator/case_full.toml run a nonlinear adiabatic-electron ITG case on the bundled QHS VMEC input deck after its wout_NuhrenbergZille_1988_QHS.nc file is generated with vmex. They accept --vmec-file for exact HSX validation WOUTs while GKX generates and reuses the field-line geometry.

In-memory geometry adapters

gkx.geometry.differentiable is the in-memory boundary. discover_differentiable_geometry_backends() reports optional vmex / booz_xform_jax availability, and flux_tube_geometry_from_mapping(...) validates an in-memory, solver-ready field-line bundle before it enters FluxTubeGeometryData. The upstream code must supply the sampled theta, bmag, gradpar, metric, drift, Jacobian, and grho arrays; GKX invents none of them. Finite-value checks run on host inputs, and JAX-traced arrays pass through flux_tube_geometry_from_mapping(..., validate_finite=False), so geometry observables, inverse-design objectives, and covariance estimates can be differentiated.

For a solved VMEX state:

geometry = gkx.geometry.from_vmex(
    state, runtime, surface_index=surface_index, alpha=alpha
)

The adapter calls only vmex.core.turbulence.gk_fieldline_geometry and then the mapping validator above. It contains no VMEC spectral or Boozer reconstruction and does not import VMEX until called. Use from_vmex for a solved state, from_vmex_wout for a standard WOUT, and flux_tube_geometry_from_mapping when an upstream code already provides the complete physical array contract. booz_xform_jax owns Boozer transforms and spectra; GKX exposes a bounded spectral derivative check and a field-line |B| evaluator, and neither invents metric or drift coefficients.

Closed VMEX mirror geometry

Closed VMEX stellarator–mirror hybrids use the parallel adapter:

geometry = gkx.geometry.from_vmex_mirror(
    mirror_state,
    setup.discretization,
    setup.axis,
    axial_flux_derivative=0.02,
    current_derivative=0.0,
    ntheta=32,
)

vmex.mirror.turbulence.gk_closed_fieldline_geometry owns field-line closure, the Clebsch label, Cartesian metric and drift projections, normalization, and equal-arc remapping. GKX only validates the returned arrays. The route accepts a line that closes after one periodic racetrack circuit and sets s_hat=0 so kx is the direct radial wavenumber. The emitted metric is complete:

\[g_{yy}=L_{ref}^2s|\nabla\alpha|^2,\quad g_{xy}=\frac{L_{ref}^2}{2}\nabla\alpha\cdot\nabla s,\quad g_{xx}=\frac{L_{ref}^2}{4s}|\nabla s|^2,\]

and the GKX mirror coefficient is

\[bgrad=L_{ref}\frac{\boldsymbol B\cdot\nabla|B|}{|B|^2} =gradpar\,\partial_z\ln|B|.\]

This is a local-Maxwellian delta-f calculation on a closed periodic mirror hybrid. It is not an open-mirror end-loss model. Joining VMEX’s open end cuts would omit absorbing/sheath boundaries, sources, ambipolar-potential formation, collisions that replenish the loss cone, and the non-Maxwellian background ordering those calculations require. The full derivation, normalizations, validation ladder, and open-lane literature are maintained in VMEX’s mirror-gyrokinetics explanation page.

The shipped case: field-strength modulation, not a mirror ratio

The case is evaluated on a solved fixed-boundary equilibrium. The builder runs solve_fixed_boundary(..., solve_lambda=True, require_convergence=True), as VMEX’s own examples/mirror/stellarator_mirror_hybrid.py does before it plots, and hands the solved state to from_vmex_mirror and gk_closed_fieldline_geometry. At the shipped resolution it converges in 979 iterations to a normalized strong-form MHD force residual of \(4.84\times10^{-3}\), with variational.maximum \(8.67\times10^{-17}\), staggered_weak_force.maximum \(9.07\times10^{-17}\) and normalized_divergence_rms \(1.40\times10^{-14}\), against a seed residual of 0.61. The record carries all of these, together with converged, iterations and the resolution that achieved them, so the state can be checked rather than assumed. solve_lambda is not optional: with the default the solve reports converged after four iterations at a residual of 0.55 and leaves the field-strength ratio at 1.614.

The racetrack axis is planar: two straight legs of straight_length 4.0 joined by return bends of return_radius 2.0. Along the sampled field line bmag carries a maximum at each of the two return bends and a minimum on each straight leg, so one circuit closes two wells rather than one. The profile is smooth, with its second harmonic eight times its fundamental.

The recorded bmag_max_over_min is that modulation depth, 1.03801. It is not a mirror ratio in the usual sense of a well minimum over a localized throat maximum, and this page uses \(R_m\) with that standard meaning in the loss-cone boundary below, so the closed case does not reuse the symbol. Nor does it track the rotating elliptical cross-section: the elongation squared is 1.77778, and the identity between the two (1.77849) held only on the seeded state. On solved equilibria the ratio moves with return_radius, and it labels one flux tube rather than the device. The loss-cone formula below must not be applied to it.

The bmag and metric panels are drawn with the parallel origin at the bmag minimum. The equal-arc grid otherwise lands z=0 on a return bend, which draws a periodic circuit as a central barrier with half a well at each edge; centering on the field-strength minimum shows the same data as the well the periodicity implies. The shift is display only: the record uses the unrolled geometry, and on the periodic parallel domain gamma, omega, and the mixing-length proxy do not depend on where z=0 falls.

The strong-form residual does not improve with resolution: on this racetrack force.normalized_rms sits between \(4.6\times10^{-3}\) and \(5.1\times10^{-3}\) across ns 5–9, mpol 4–6 and coefficient_count 16–64, with no downward trend, while the weak-form measures and \(\nabla\cdot\mathbf{B}\) reach machine precision. VMEX’s closed lane asserts \(1.6\times10^{-4}\) for its circular limit, which this leg-and-bend axis does not reach. Whether that plateau is the curvature junction or something undriven is asked upstream in uwplasma/vmex#211, so the residual is published as a measurement and the shipped case is gated only against being an unsolved state.

The poster snapshot, the animated WebP loop, and the rotating field-line movie show the same one-circuit-closing line. All media and their machine-readable run record, which stamps the GKX and VMEX commits it was built with, are regenerated with:

PYTHONPATH=src python scripts/artifacts/build_vmex_mirror_gkx_artifacts.py

with VMEX importable at the commit the record names.

The closed-field-line construction follows the straight-field-line mirror coordinates of Ågren and Savenko and the paraxial rotating-ellipse fixtures in Rodríguez, Helander, and Goodman. The GKX equal-arc convention follows the stellarator flux-tube construction of Xanthopoulos et al. The separate open lane is benchmarked against the kinetic open-mirror programs of Francisquez et al. and Rosen et al.; these references motivate, rather than waive, the missing open-boundary physics:

Open-ended mirrors are out of scope

An open mirror is not a different endpoint option for the periodic flux-tube solver. Particles cross physical end planes, the loss cone changes the background distribution, sources replace lost particles, collisions scatter particles between passing and trapped regions, and the electrostatic potential adjusts the electron and ion loss rates. These pieces form one kinetic model. Endpoint damping or a zero-incoming-value rule by itself is only a numerical outflow experiment.

The minimum conservative one-dimensional model evolves a full distribution f_s(z, v_parallel, mu, t):

\[\partial_t(\mathcal J f_s) +\partial_z(\mathcal J v_\parallel f_s) +\partial_{v_\parallel}(\mathcal J a_{\parallel s}f_s) =\mathcal J\left(C_s[f]+S_s\right),\]

\[a_{\parallel s} =-\frac{\mu}{m_s}\partial_z B -\frac{q_s}{m_s}\partial_z\phi, \qquad \mathcal E_s=\frac{m_s v_\parallel^2}{2}+\mu B+q_s\phi.\]

Here \(\mathcal J\) is the gyrocentre phase-space Jacobian. In a static smooth field, the collisionless interior must preserve magnetic moment \(\mu\) and energy \(\mathcal E_s\) to the scheme’s order. With midplane field \(B_0\) and throat field \(B_m\), the zero-potential loss-cone boundary is

\[\sin^2\vartheta_{lc}=\frac{B_0}{B_m}=\frac{1}{R_m}.\]

An electrostatic barrier shifts this boundary through \(\mathcal E_s\); it must not be represented by changing the geometric mirror ratio. At an end plane, outgoing characteristics leave the domain and incoming characteristics need a declared absorbing, logical-sheath, or conducting-sheath rule, with the reflection cutoff derived from the end potential and field solve. Sources must state their particle and energy injection, and the collision operator must state which invariants it preserves and how it repopulates the loss cone.

VMEX owns the open equilibrium, axis/surface geometry, B(z), metric and drift arrays, physical end planes, and geometry differentiation. The conservative phase-space fluxes, velocity-space boundaries, positivity, sources, collisions, and field/sheath closure belong to an open-kinetic model, and GKX’s local-Maxwellian delta-f core is not one. GX, GS2, stella, and gyaradax are periodic/twist-linked flux-tube references, and their endpoint machinery is not evidence for an open model. The primary references are the full-f conservative open-field-line formulation and sheath treatment of Shi et al. (2017), the high-field-mirror study of Francisquez et al. (2023), and the review of classical end-loss processes by Baldwin (1977).

GKX supports closed periodic mirror hybrids only and makes no open-mirror, Pastukhov, sheath, or confinement-time claim.

VMEX WOUT geometry

For an existing VMEC-compatible WOUT, use the read-only companion without reconstructing or re-solving an equilibrium:

geometry = gkx.geometry.from_vmex_wout(
    "wout_case.nc", surface_index=surface_index, alpha=alpha
)

This route calls only vmex.core.turbulence.gk_fieldline_geometry_from_wout; VMEX owns file reading, spectral evaluation, normalization, metrics, and drifts, while GKX owns only the generic contract and its consumption.

Differentiable geometry bridge validation

The validation record is generated by:

JAX_ENABLE_X64=1 PYTHONPATH=src \
  python examples/09_autodiff/geometry_bridge.py

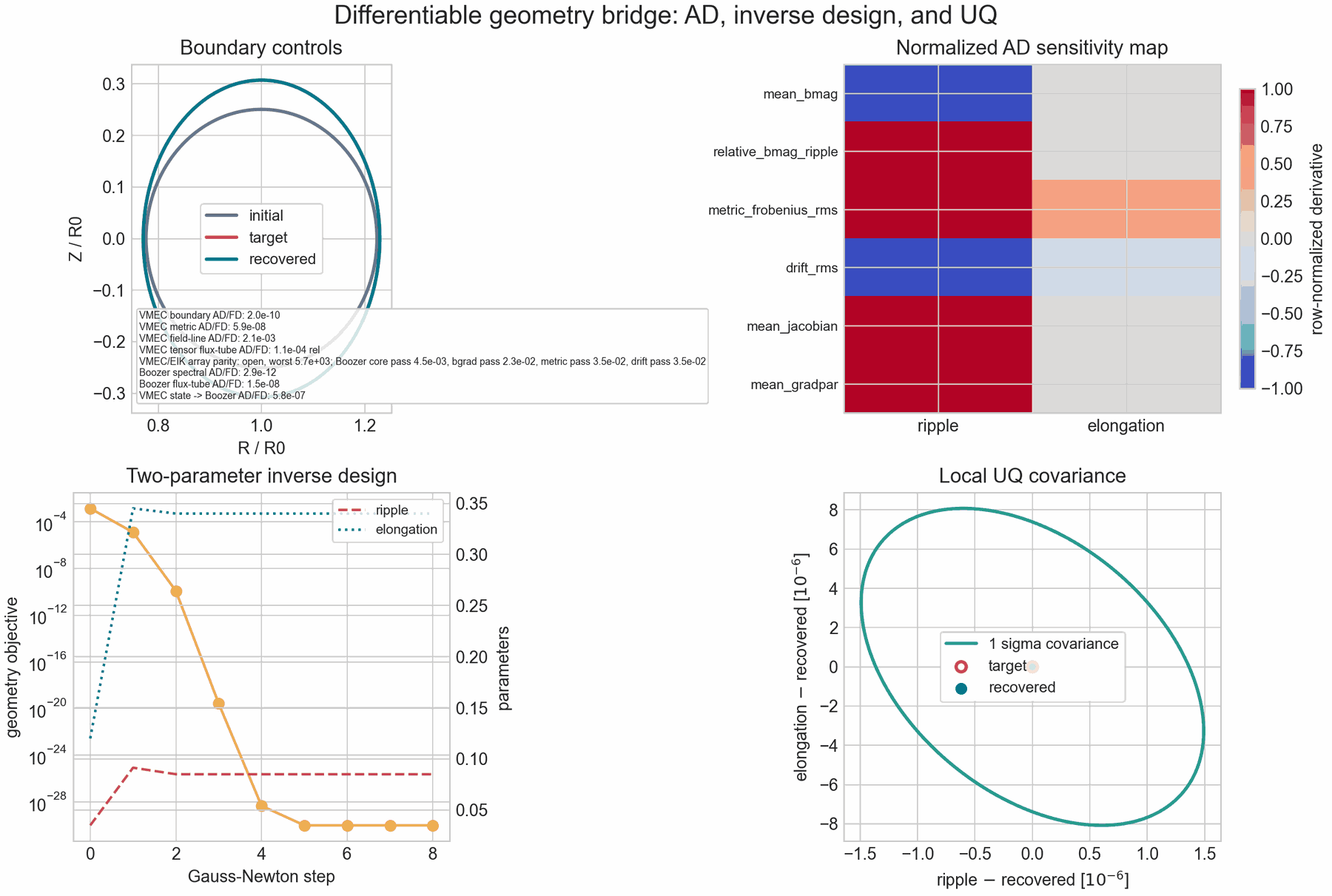

It writes docs/_static/differentiable_geometry_bridge.json (the companion panel is regenerated on demand and is not tracked). The JSON records vmex and booz_xform_jax API availability, autodiff-vs-finite-difference sensitivity errors, inverse-design convergence, local UQ covariance diagnostics, and seven optional real-backend derivative gates:

a vmex boundary-aspect check;
a vmex metric-tensor check through vmex.geom.eval_geom, with maximum absolute and relative AD-vs-finite-difference errors of about 5.9e-8 and 1.3e-7;
a stellarator VMEC field-line tensor check through vmex.geom plus vmex.vmec_bcovar on the non-axisymmetric nfp4_QH_warm_start fixture, which checks |B| ripple and sampled VMEC metric observables before any reduced GKX metric/drift closure, at about 2.1e-3 absolute and 2.4e-5 relative;
a direct VMEC tensor-derived flux-tube mapping check, which inverts the sampled metric tensor, derives gds*, gradpar, Jacobian, grho, and a local grad-\(B\) drift closure, at a maximum relative error of about 1.1e-4 on nfp4_QH_warm_start;
a small booz_xform_jax Boozer-spectrum check;
a bounded Boozer-spectrum-to-flux-tube mapping check;
a real vmex state to booz_xform_jax to GKX field-line geometry check, at about 5.8e-7 absolute and 1.4e-8 relative for the tracked geometry observables.

The same record carries a VMEC/EIK array-parity audit of the direct tensor path, which stays diagnostic_open: that path uses a VMEC-coordinate/equal-theta sampling and a local grad-\(B\) closure. The JAX-native vmex -> booz_xform_jax Boozer equal-arc core does match the imported convention on nfp4_QH_warm_start: bmag, the solver Jacobian, gradpar, q, and s_hat to worst normalized/scalar errors 4.5e-3 and 2.4e-3, the derivative-like bgrad to 2.3e-2, the zero-beta metric profiles gds2, gds21, gds22, and grho to 3.45e-2, and the loaded-convention zero-beta drift profiles cvdrift, gbdrift, cvdrift0, and gbdrift0 to 3.50e-2.

The reusable API entry point for this workflow is geometry_inverse_design_report(mapping_fn, initial_params, target_observables, ...): it runs a bounded Gauss-Newton inverse design on selected solver-ready geometry observables, checks the final sensitivity Jacobian against central finite differences, and records local covariance diagnostics.

The gradient-report API accepts jacobian_chunk_size. None evaluates all forward directions in one vmap; an integer bounds the simultaneous directions; and "auto" delegates the memory policy to SOLVAX. The standard VMEC/Boozer geometry sensitivity report uses "auto" and records that choice in its JSON output. Chunked and unchunked Jacobians are required to agree before a report can support an optimization claim.

jacobian_mode separately controls derivative direction. "forward" is appropriate for few design variables, "reverse" for few observables, and "auto" selects between them from the input/output dimensions. A chunk size budgets simultaneous JVP directions, so "auto" resolves to forward mode when one is given and "reverse" with a chunk size is rejected. Reports record the resolved mode, and both explicit modes must agree with central finite differences before either is used in optimization.

The bridge validates more than array shapes. Host-side mappings must contain finite scalar metadata such as q, R0, B0, and theta_scale, must provide at least one theta sample, and must use a positive integer nfp. The finite-difference utilities reject non-positive step sizes, and the inverse-design covariance block records rank and conditioning. Each geometry AD/finite-difference gate also records a conditioning block alongside the raw Jacobians: finite flags for the AD and finite-difference Jacobians, singular values, numerical rank, condition number, AD row/column norms, per-parameter finite-difference step scaling, and the observable/parameter location of the worst absolute and relative mismatch. This metadata is separate from the pass tolerance: a derivative can agree with finite differences and still be a poor optimization direction if the sensitivity map is nearly rank deficient or the finite-difference step is poorly scaled to the chosen VMEC coefficient. Quote both the derivative error and the conditioning metadata before treating a VMEC/Boozer bridge row as optimization-ready.

Growth-rate transport-gradient audits also need an eigenbranch-locality check. The public helper solver_linear_operator_matrix_from_geometry(geometry, ...) materializes the same GKX linear operator used by solver_growth_rate_from_geometry(...), and dominant_eigenvalue_branch_locality_report compares the dominant-growth finite-difference slope against the slope of the eigenvalue nearest to the base dominant eigenvalue. If the independently selected max-growth branch switches, or if the base branch is under-isolated, the report fails closed. (The per-surface VMEX wrapper that looped this over surfaces, field lines and k_y samples was a campaign report and left the package in ARCH-A.) A derivative claim requires VMEX’s turbulence tangent tests, this locality check, and an independent finite-difference comparison on the exact objective. The vmex_boundary_chain_*.json records in docs/_static are conditioning evidence only.

The reusable low-level entry point is observable_gradient_validation_report(observable_fn, params, ...). It flattens arbitrary geometry or objective observables, compares JAX AD Jacobians with central finite differences, records absolute and relative error tables, checks a tangent direction, adds finite flags, and applies an explicit rank/condition-number gate. Its payload is strict JSON compatible: nonfinite diagnostic numbers are written as null while the corresponding finite flag and failure reason remain explicit. geometry_sensitivity_report is a thin FluxTubeGeometryData wrapper around the same helper.

Passing these gates proves local differentiability and conditioning of the supplied observables. It is not a claim that GKX has run a full stellarator optimization, which also needs the VMEC/Boozer array parity, solver-objective gradient, and nonlinear transport gates below.

Multi-Equilibrium Boozer Parity Matrix

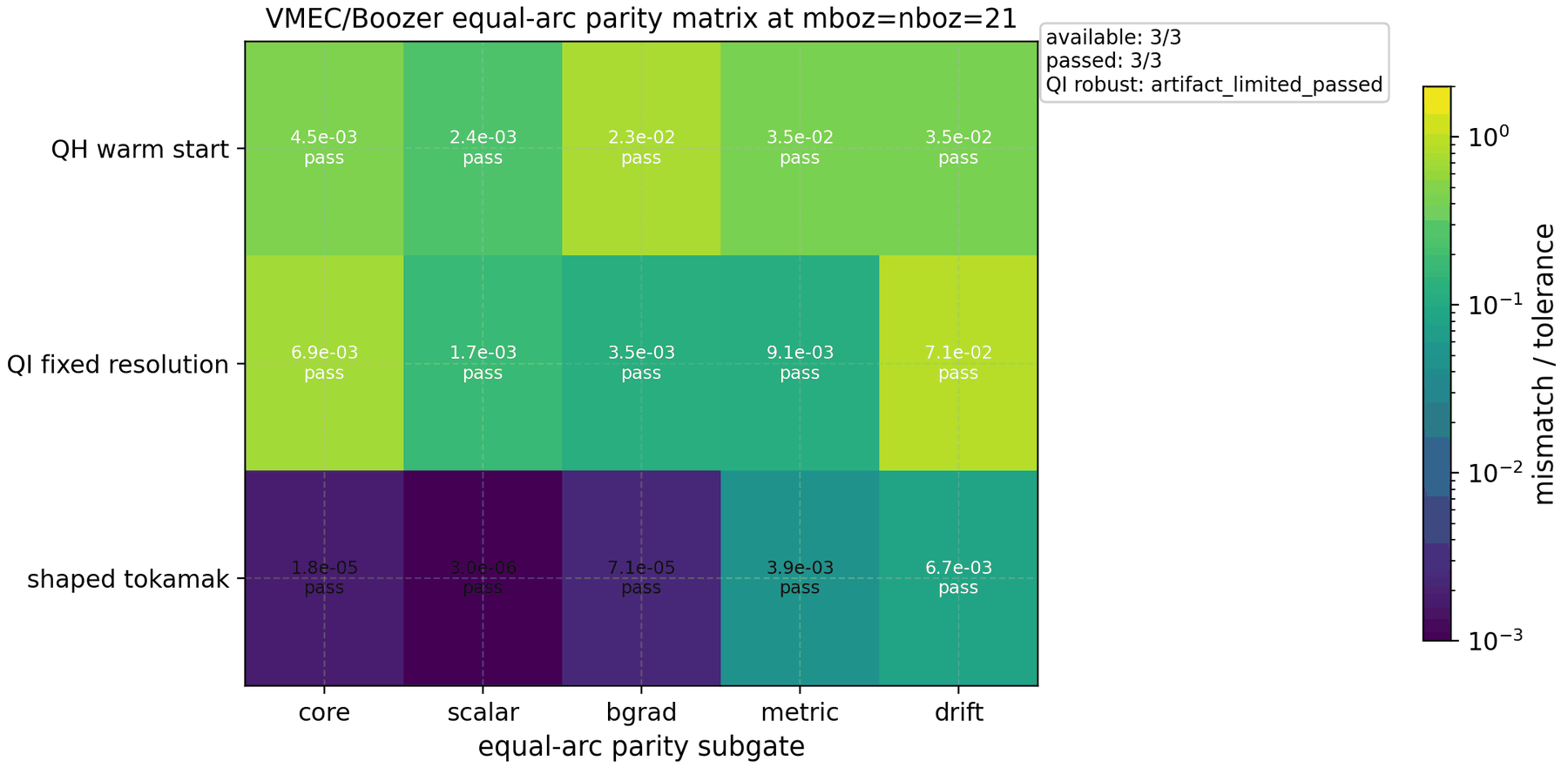

The replayable multi-equilibrium matrix is tracked at docs/_static/vmec_boozer_parity_matrix.json; its {png,pdf,csv} companions are regenerated on demand by the builder and are not tracked. Each cell of the figure reports the absolute mismatch for one subgate, coloured by mismatch over tolerance. The builder enforces mboz,nboz >= 21 before calling the optional backend path, because the QI drift gate is under-resolved at lower Boozer mode counts. A sample_set_provenance block and a sample_set_id CSV column identify each bounded row by case_name, ntheta, mboz, and nboz, and record that the builder launches no external VMEC solves.

The matrix covers nfp4_QH_warm_start, nfp3_QI_fixed_resolution_final, and the finite-beta shaped_tokamak_pressure example, and at mboz=nboz=21 every row passes its equal-arc gates. The fixed-resolution QI row passes the loaded-convention drift subgate at 7.13e-2 against an 8e-2 tolerance. The evaluated QI robustness variants at ntheta=8 and ntheta=16 also pass. Input-only QI seeds without a bundled wout reference are rejected with an artifact_reason rather than solved, so the declared QI seed campaign is artifact-limited. None of this is broad random-seed nonlinear QI transport validation or QI optimization. The release guard requires the finite-beta shaped_tokamak_pressure row, so the claim cannot regress to zero-beta-only parity evidence.

In-memory differentiable geometry API

Differentiable stellarator optimization must stay on the in-memory path:

from gkx import flux_tube_geometry_from_vmec_boozer_state

geom = flux_tube_geometry_from_vmec_boozer_state(
    state,
    runtime,
    inp,
    wout,
    surface_index=surface_index,
    alpha=0.0,
    ntheta=32,
    mboz=21,
    nboz=21,
)

This public wrapper converts a solved vmex state through booz_xform_jax and returns the GKX FluxTubeGeometryData solver contract. The path is SpectralState -> Boozer tables -> booz_xform_jax -> FluxTubeGeometryData and does not write or reload *.eik.nc files. The file-backed VMEC/EIK route is the runtime import path for ordinary examples, but not the path for end-to-end differentiable optimization.

The wrapper is an API boundary, not a new physics claim. It inherits the mboz,nboz >= 21 and equal-arc parity requirements of the VMEC/Boozer gates. The parity-matrix tests reject mboz,nboz < 21 and assert that a passed equal-arc matrix is still tagged as not_full_transport_gradient_claim. The gradient-holdout tests require the mode21_vmec_boozer_state source scope, mboz,nboz >= 21, and track the nonlinear-window estimator objectives as a reduced differentiability gate rather than a production nonlinear-optimization gate.

The release guard docs/_static/vmec_boozer_differentiability_claim_guard.json checks those contents directly. It requires the equal-arc parity matrix, the QH/Li383 mode-21 frequency/quasilinear/nonlinear-window gradient holdouts, explicit diagnostic_open status for the direct VMEC tensor-vs-imported-EIK convention gap, a passing finite-beta/pressure equal-arc parity row, a startup-only label for the nonlinear finite-difference audit, and three shaped-pressure finite-beta gates:

the eigenfrequency-gradient gate in docs/_static/vmec_boozer_shaped_pressure_solver_frequency_gradient_gate.json;
the quasilinear-gradient gate in docs/_static/vmec_boozer_shaped_pressure_quasilinear_gradient_gate.json;
the reduced nonlinear-window estimator-gradient gate in docs/_static/vmec_boozer_shaped_pressure_nonlinear_window_gradient_gate.json.

A tagged release must fail if these artifacts try to promote a direct tensor-parity failure or a startup nonlinear-window response into a converged nonlinear transport-gradient claim. The guard also checks the solver-objective content of each QH/Li383 gradient row: frequency rows must carry gamma and omega; quasilinear rows must additionally carry kperp_eff2, linear_heat_flux_weight, and mixing_length_heat_flux_proxy; nonlinear-window estimator rows must also carry the window mean, coefficient of variation, and trend metrics. The release thresholds are 5e-2 for frequency rows, 2e-2 for quasilinear rows, and 7.5e-2 for reduced nonlinear-window estimator rows. These are AD/finite-difference consistency gates, not nonlinear turbulence-gradient accuracy claims.

For release claims, the differentiable-geometry lane is closed only for artifact-passing equal-arc parity rows, reduced QH/Li383 AD/finite-difference objectives, and the shaped-pressure finite-beta eigenfrequency/quasilinear/reduced nonlinear-window estimator-gradient gates. The bridge starts at real vmex state coefficients and reaches GKX solver observables. It has not validated converged nonlinear turbulence gradients, broad QI transport behavior, nonlinear heat-flux optimization, or nonlinear audits of optimized equilibria.

VMEC and Miller runtime examples

VMEC-driven stellarator runs:

cd examples/vmec
vmex input.nfp3_QI_fixed_resolution_final
cd ../..
gkx run \
  --config benchmarks/cases/w7x_nonlinear_vmec_geometry.toml \
  --steps 200 \
  --out tools_out/w7x_vmec.out.nc

cd examples/vmec
vmex input.NuhrenbergZille_1988_QHS
cd ../..
gkx run \
  --config examples/04_nonlinear_stellarator/case_full.toml \
  --steps 200 \
  --out tools_out/hsx_vmec.out.nc

Miller geometry runs:

gkx run \
  --config benchmarks/cases/cyclone_nonlinear_miller.toml \
  --steps 200 \
  --out tools_out/cyclone_miller.out.nc
